MAX 4 / Buffalo Springer Suspension Kit – Bolt-On Upgrade (Mid-1995 and Older)

NOTE: Springer kits are Built to Order. Our standard lead time is 5-6 weeks.

Upgrade your MAX 4 or Buffalo with our new Springer Suspension Kit, offered for the first time by Recreatives Industries to deliver a smoother, more capable ride on any terrain. Designed as a true bolt-on system, this kit replaces the original straight axle setup with fully independent suspension—no cutting, welding, or frame modifications required!

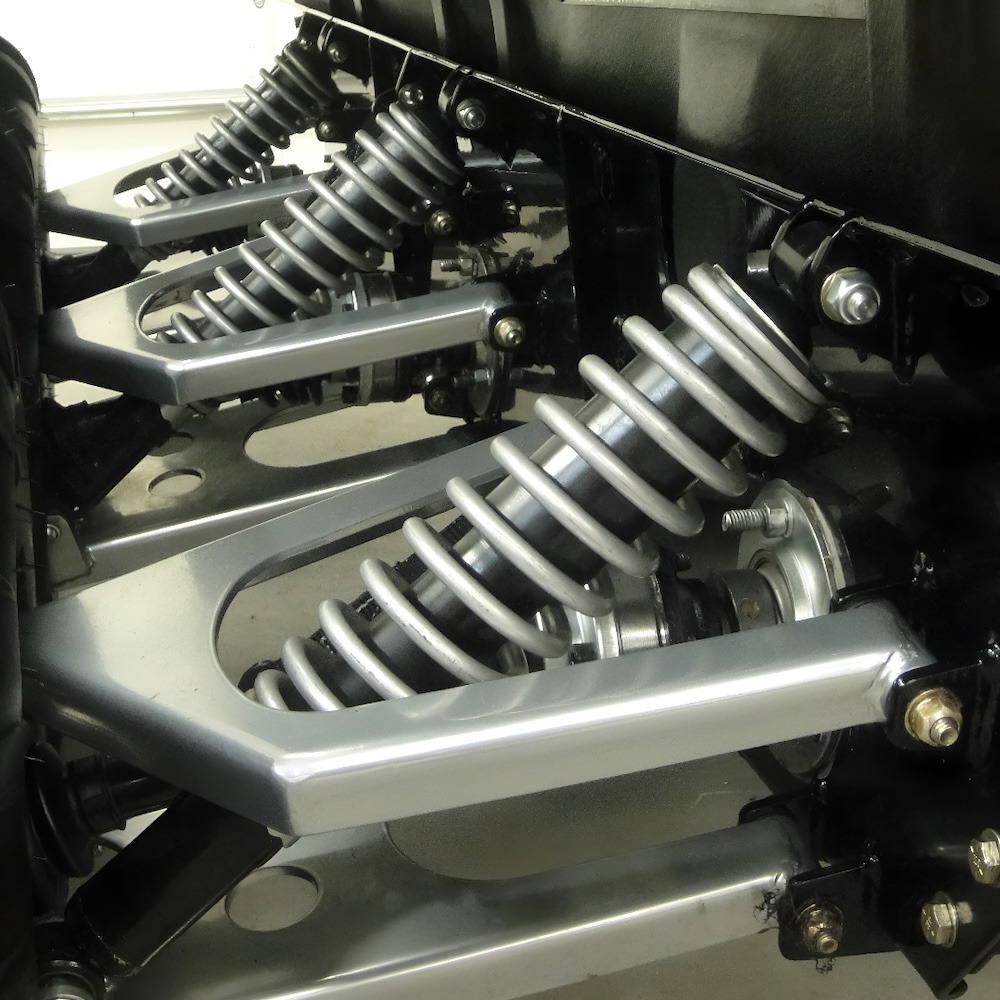

Built from laser-cut 3/16″ HRPO steel, precision-formed brackets and heavy-duty A-arms, our Springer kit dramatically improves ride quality, stability, and handling. Custom-tuned coil over shocks provide over 6 inches of travel, absorbing bumps, ruts, and obstacles with ease while maintaining the MAX’s signature non-differential skid-steering ability and amphibious performance.

Whether you use your MAX 4 or Buffalo for trail riding, hunting, work, or recreation, this suspension kit transforms the machine with modern control and comfort.

Compatible with Mid-1995 and newer MAX 4 and Buffalo ATVs with 72mm outer bearings (before MAX serial #11598 and before Buffalo serial #12244).

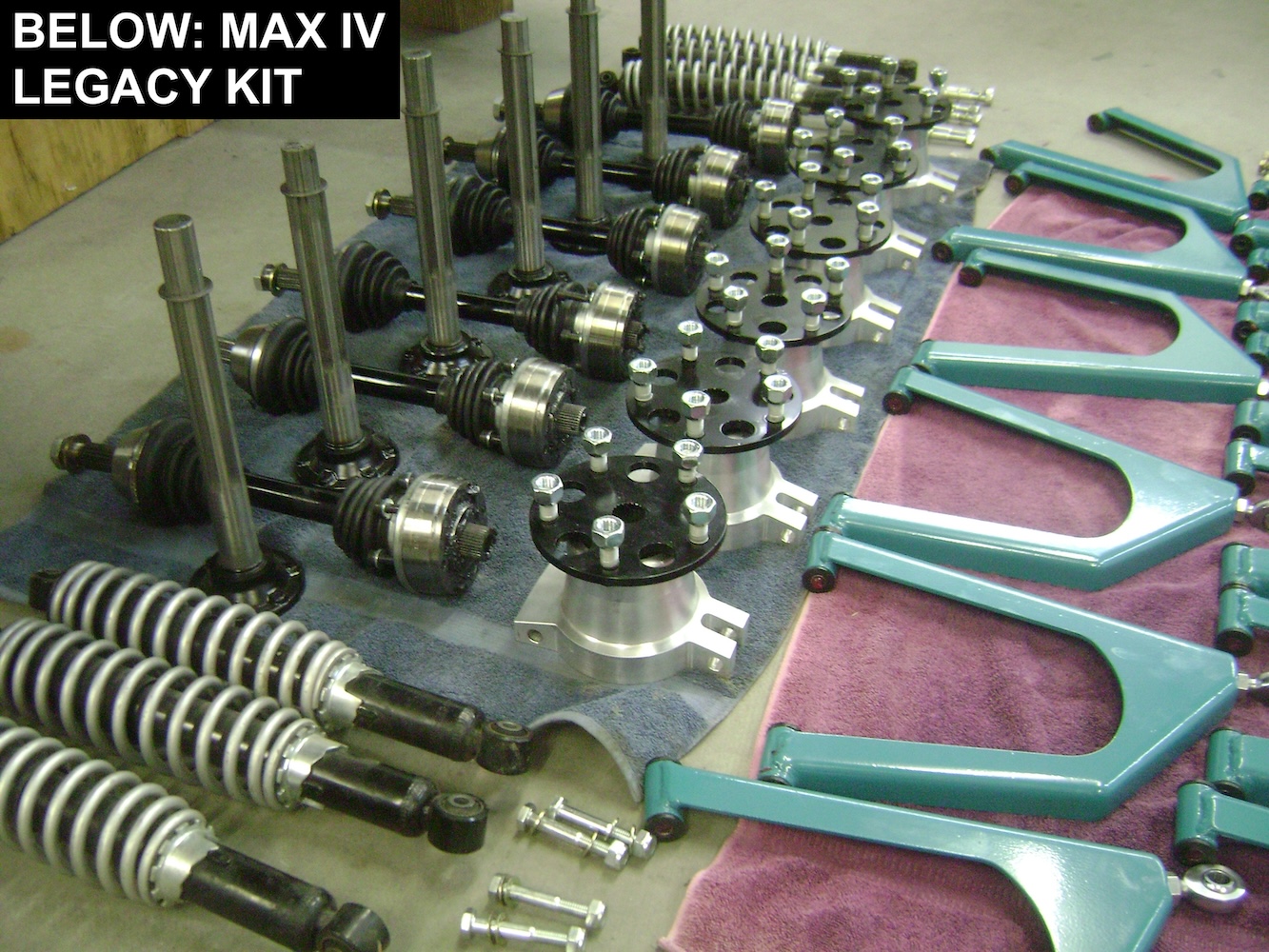

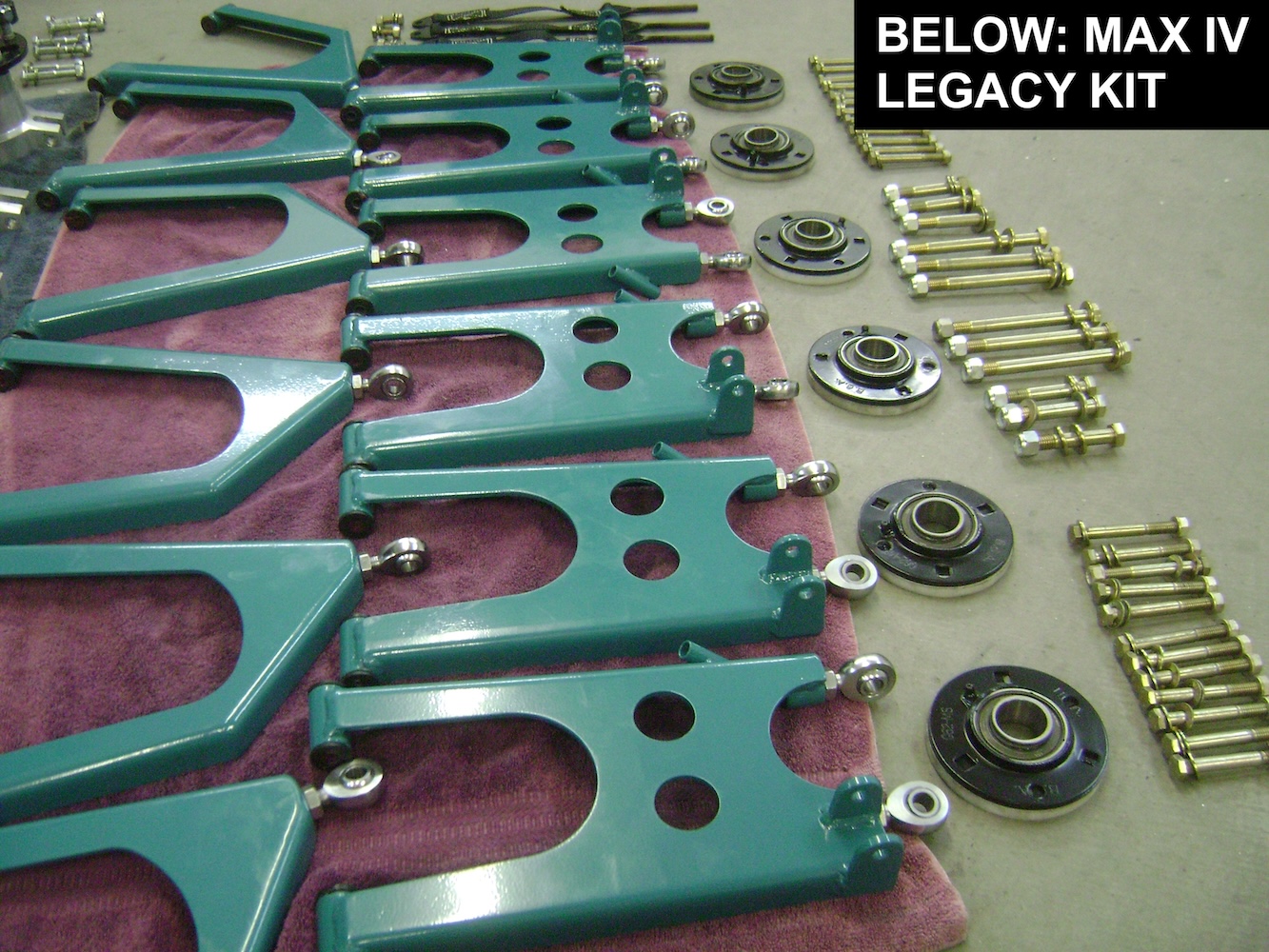

Kit includes:
•Left Side Plate (powder-coated black)
•Right Side Plate (powder-coated black)
•Front Side Plate (powder-coated black)
•Rear Side Plate (powder-coated black)
•6 Upper A-Arms (powder-coated silver)
•6 Lower A-Arms (powder-coated silver)
•6 Inner Splined Axles (If your machine currently has non-splined axles, you can purchase our splined sprockets and chain set separately. Call us at 800-255-2511 for assistance)
•6 Outer Splined Axles
•6 Inner CV Joints
•6 Outer CV Joints
•6 Forged Aluminum Bearing Carriers
•6 Wheel Hubs (MAX’s standard 5×4.5 bolt pattern)
•6 Coil-Over Shocks
•6 Limit Straps
•6 Body Plate Spacers
•6 Outer Bearings with Flanges and Gaskets
•6 Double Bearings for Bearing Carriers
•18 High-Performance Chromoly Heim Joints for A-Arms
•All Required Fasteners, Hardware, and Instructions for installation.

*Factory installation is available at our Bradenton, Florida facility for an additional charge.

NOTE: Kit does NOT include delivery. Call us at 800-255-2511 for a freight quote.

Engine Recommendation: Vanguard 23hp EFI V-Twin or similar/higher horsepower. If you would like to combine our engine upgrade package with your springer kit, contact us at 800-255-2511 for a discounted rate.

Bring your MAX 4 or Buffalo 6×6 ATV into the modern era.
Ride smoother. Ride farther. Ride MAX.
